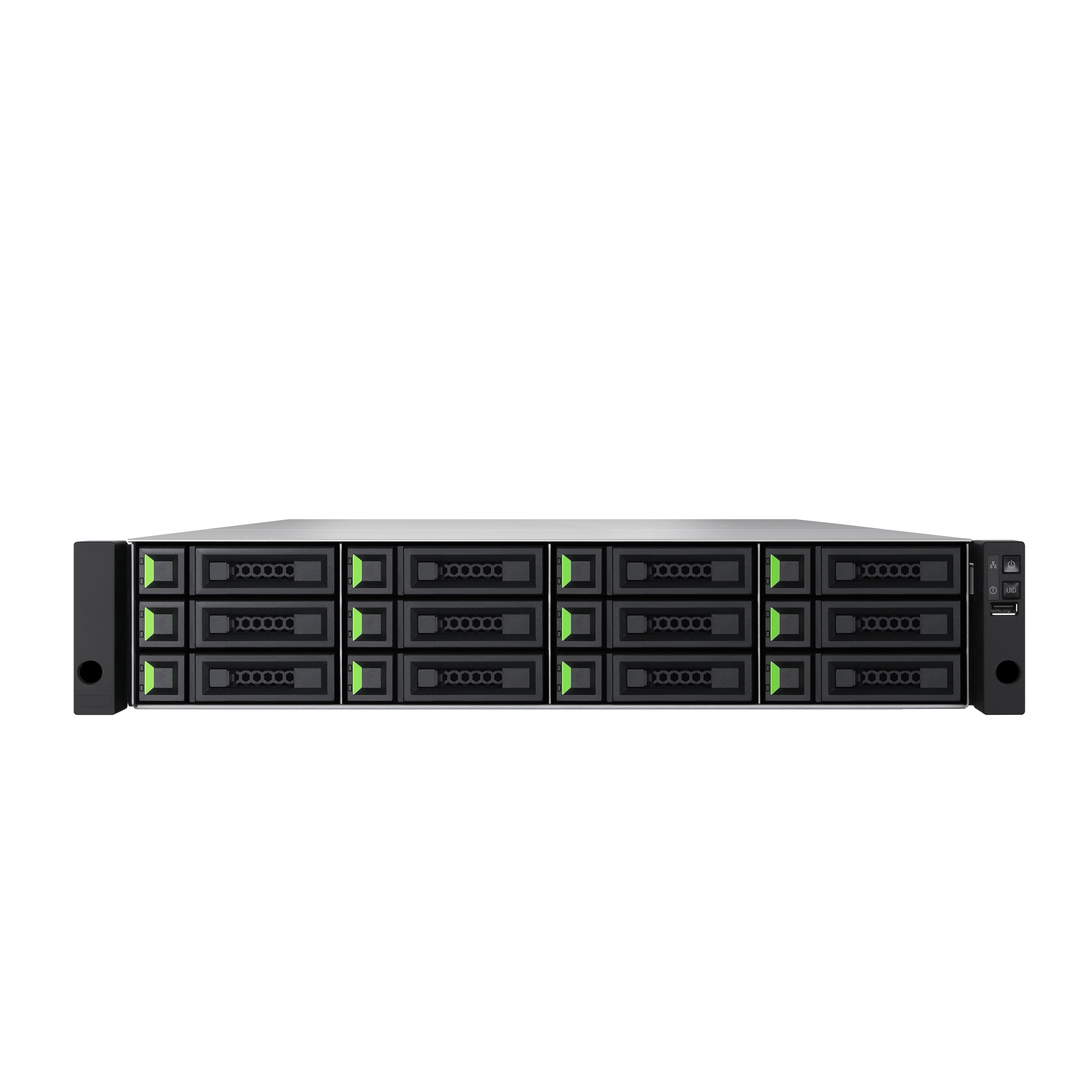

12 Bay 2U Dual-Controller SAN System, iSCSI, RAID 0,1, 5, 6, 10, 50, 60, global hot spare, Intel XEON 4-core 2 GHz (burst up to 3.1GHz), 16GB DDR4 ECC Memory (8GB per controller, max. 512 GB), 8-ported 10GbE 10GBASE-SR iSCSI incl. 4x optical transceiver, 4x 12G SAS expansion port redundant power supply, 4 slots for optional host cards, max. 24 host connection ports, up to 532 of managed drives, max. raw capacity 16,77PB supports 3.5"/2.5" SAS/SATA* HDD and 2.5" SAS/SATA* SSD (*SATA device need optional MUX board for dual controller operation support), up to 1,3 Mio. IOPS, max. throughput 12,8 GB/s up to 4.096 volumes, max. # of hosts iSCSI: 2.048; FC: 512 volume cloning, volume restoration, volume snapshot (4096 snapshots/system, 64 snapshots/LUN, 64 LUNs), remote-replication asynchronous (built-in) and synchronous (option), thin-provisioning, SSD caching (optional), auto-tiering w/ 3-tier (optional), Storage OS XEVO with advanced SW features: drive health monitoring QSLife, System analysis QReport, authorization of user responsibility QAuth. security: HTTPS / SSH / iSCSI CHAP / ISE & SED management: Web UI / Serial console / RESTful API / S.E.S. / LCM(option) incl. slide rail kit. Dimensions in mm 88 x 438 x 593, Weight in kg 27

12 Bay 2U Single-Controller SAN System, iSCSI, RAID 0,1, 5, 6, 10, 50, 60, global hot spare, Intel XEON 4-core 2 GHz (burst up to 3.1GHz), 8GB DDR4 ECC Memory (max. 256 GB), 4-ported 10GbE 10GBASE-SR iSCSI incl. 2x optical transceiver, 2x 12G SAS expansion port redundant power supply, 2 slots for optional host cards, max. 12 host connection ports, up to 532 of managed drives, max. raw capacity 16,77PB supports 3.5"/2.5" SAS/SATA* HDD and 2.5" SAS/SATA* SSD (*SATA device need optional MUX board for dual controller operation support), up to 1,3 Mio. IOPS, max. throughput 12,8 GB/s up to 4.096 volumes, max. # of hosts iSCSI: 2.048; FC: 512 volume cloning, volume restoration, volume snapshot (4096 snapshots/system, 64 snapshots/LUN, 64 LUNs), remote-replication asynchronous (built-in) and synchronous (option), thin-provisioning, SSD caching (optional), auto-tiering w/ 3-tier (optional), Storage OS XEVO with advanced SW features: drive health monitoring QSLife, System analysis QReport, authorization of user responsibility QAuth. security: HTTPS / SSH / iSCSI CHAP / ISE & SED management: Web UI / Serial console / RESTful API / S.E.S. / LCM(option) incl. slide rail kit. Dimensions in mm 88 x 438 x 593, Weight in kg 27

16 Bay 2U Dual-Controller SAN System, iSCSI, RAID 0,1, 5, 6, 10, 50, 60, global hot spare, Intel XEON 4-core 2 GHz (burst up to 3.1GHz), 16GB DDR4 ECC Memory (8GB per controller, max. 512 GB), 8-ported 10GbE 10GBASE-SR iSCSI incl. 4x optical transceiver, 4x 12G SAS expansion port redundant power supply, 4 slots for optional host cards, max. 24 host connection ports, up to 536 of managed drives, max. raw capacity 16,77PB supports 3.5"/2.5" SAS/SATA* HDD and 2.5" SAS/SATA* SSD (*SATA device need optional MUX board for dual controller operation support), up to 1,3 Mio. IOPS, max. throughput 12,8 GB/s up to 4.096 volumes, max. # of hosts iSCSI: 2.048; FC: 512 volume cloning, volume restoration, volume snapshot (4096 snapshots/system, 64 snapshots/LUN, 64 LUNs), remote-replication asynchronous (built-in) and synchronous (option), thin-provisioning, SSD caching (optional), auto-tiering w/ 3-tier (optional), Storage OS XEVO with advanced SW features: drive health monitoring QSLife, System analysis QReport, authorization of user responsibility QAuth. security: HTTPS / SSH / iSCSI CHAP / ISE & SED management: Web UI / Serial console / RESTful API / S.E.S. / LCM(option) incl. slide rail kit. Dimensions in mm 88 x 438 x 593, Weight in kg 27

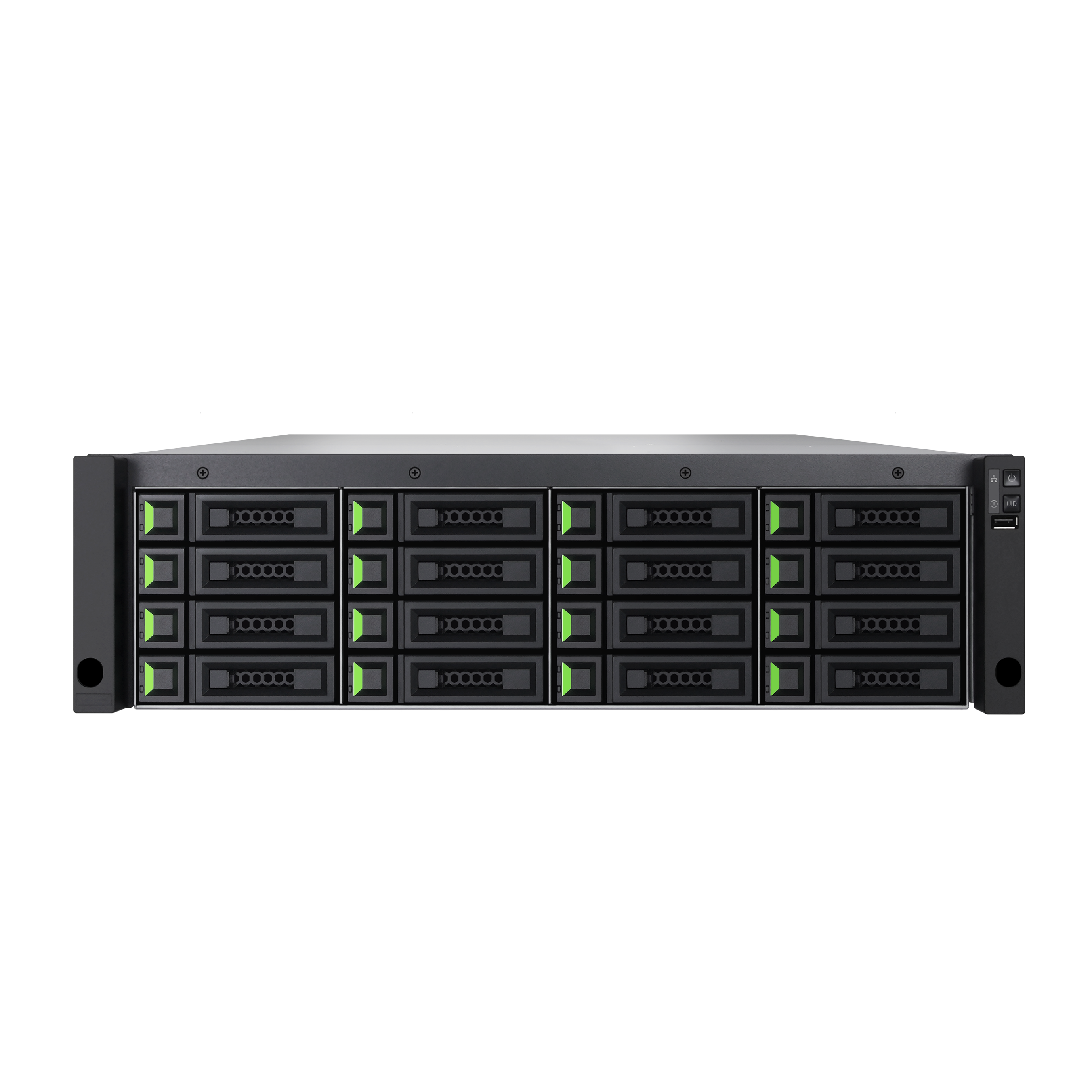

16 Bay 3U Single-Controller SAN System, iSCSI, RAID 0,1, 5, 6, 10, 50, 60, global hot spare, Intel XEON 4-core 2 GHz (burst up to 3.1GHz), 8GB DDR4 ECC Memory (max. 256 GB), 4-ported 10GbE 10GBASE-SR iSCSI incl. 2x optical transceiver, 2x 12G SAS expansion port redundant power supply, 2 slots for optional host cards, max. 12 host connection ports, up to 536 of managed drives, max. raw capacity 16,77PB supports 3.5"/2.5" SAS/SATA* HDD and 2.5" SAS/SATA* SSD (*SATA device need optional MUX board for dual controller operation support), up to 1,3 Mio. IOPS, max. throughput 12,8 GB/s up to 4.096 volumes, max. # of hosts iSCSI: 2.048; FC: 512 volume cloning, volume restoration, volume snapshot (4096 snapshots/system, 64 snapshots/LUN, 64 LUNs), remote-replication asynchronous (built-in) and synchronous (option), thin-provisioning, SSD caching (optional), auto-tiering w/ 3-tier (optional), Storage OS XEVO with advanced SW features: drive health monitoring QSLife, System analysis QReport, authorization of user responsibility QAuth. security: HTTPS / SSH / iSCSI CHAP / ISE & SED management: Web UI / Serial console / RESTful API / S.E.S. / LCM(option) incl. slide rail kit.

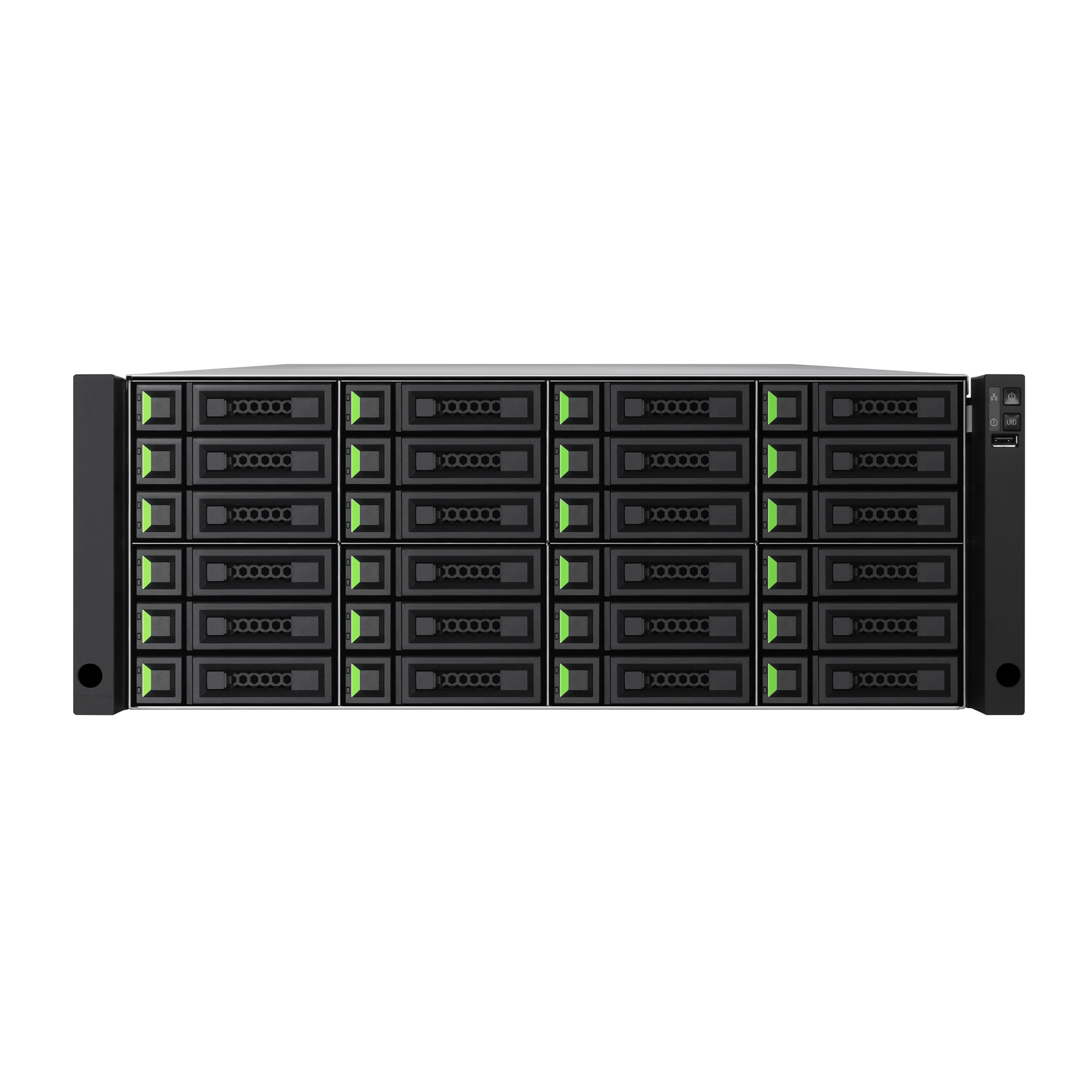

24 Bay 4U Dual-Controller SAN System, iSCSI, RAID 0,1, 5, 6, 10, 50, 60, global hot spare, Intel XEON 4-core 2 GHz (burst up to 3.1GHz), 16GB DDR4 ECC Memory (8GB per controller, max. 512 GB), 8-ported 10GbE 10GBASE-SR iSCSI incl. 4x optical transceiver, 4x 12G SAS expansion port redundant power supply, 4 slots for optional host cards, max. 24 host connection ports, up to 544 of managed drives, max. raw capacity 16,77PB supports 3.5"/2.5" SAS/SATA* HDD and 2.5" SAS/SATA* SSD (*SATA device need optional MUX board for dual controller operation support), up to 1,3 Mio. IOPS, max. throughput 12,8 GB/s up to 4.096 volumes, max. # of hosts iSCSI: 2.048; FC: 512 volume cloning, volume restoration, volume snapshot (4096 snapshots/system, 64 snapshots/LUN, 64 LUNs), remote-replication asynchronous (built-in) and synchronous (option), thin-provisioning, SSD caching (optional), auto-tiering w/ 3-tier (optional), Storage OS XEVO with advanced SW features: drive health monitoring QSLife, System analysis QReport, authorization of user responsibility QAuth. security: HTTPS / SSH / iSCSI CHAP / ISE & SED management: Web UI / Serial console / RESTful API / S.E.S. / LCM(option) incl. slide rail kit.

24 Bay 4U Single-Controller SAN System, iSCSI, RAID 0,1, 5, 6, 10, 50, 60, global hot spare, Intel XEON 4-core 2 GHz (burst up to 3.1GHz), 8GB DDR4 ECC Memory (max. 256 GB), 4-ported 10GbE 10GBASE-SR iSCSI incl. 2x optical transceiver, 2x 12G SAS expansion port redundant power supply, 2 slots for optional host cards, max. 12 host connection ports, up to 544 of managed drives, max. raw capacity 16,77PB supports 3.5"/2.5" SAS/SATA* HDD and 2.5" SAS/SATA* SSD (*SATA device need optional MUX board for dual controller operation support), up to 1,3 Mio. IOPS, max. throughput 12,8 GB/s up to 4.096 volumes, max. # of hosts iSCSI: 2.048; FC: 512 volume cloning, volume restoration, volume snapshot (4096 snapshots/system, 64 snapshots/LUN, 64 LUNs), remote-replication asynchronous (built-in) and synchronous (option), thin-provisioning, SSD caching (optional), auto-tiering w/ 3-tier (optional), Storage OS XEVO with advanced SW features: drive health monitoring QSLife, System analysis QReport, authorization of user responsibility QAuth. security: HTTPS / SSH / iSCSI CHAP / ISE & SED management: Web UI / Serial console / RESTful API / S.E.S. / LCM(option) incl. slide rail kit.

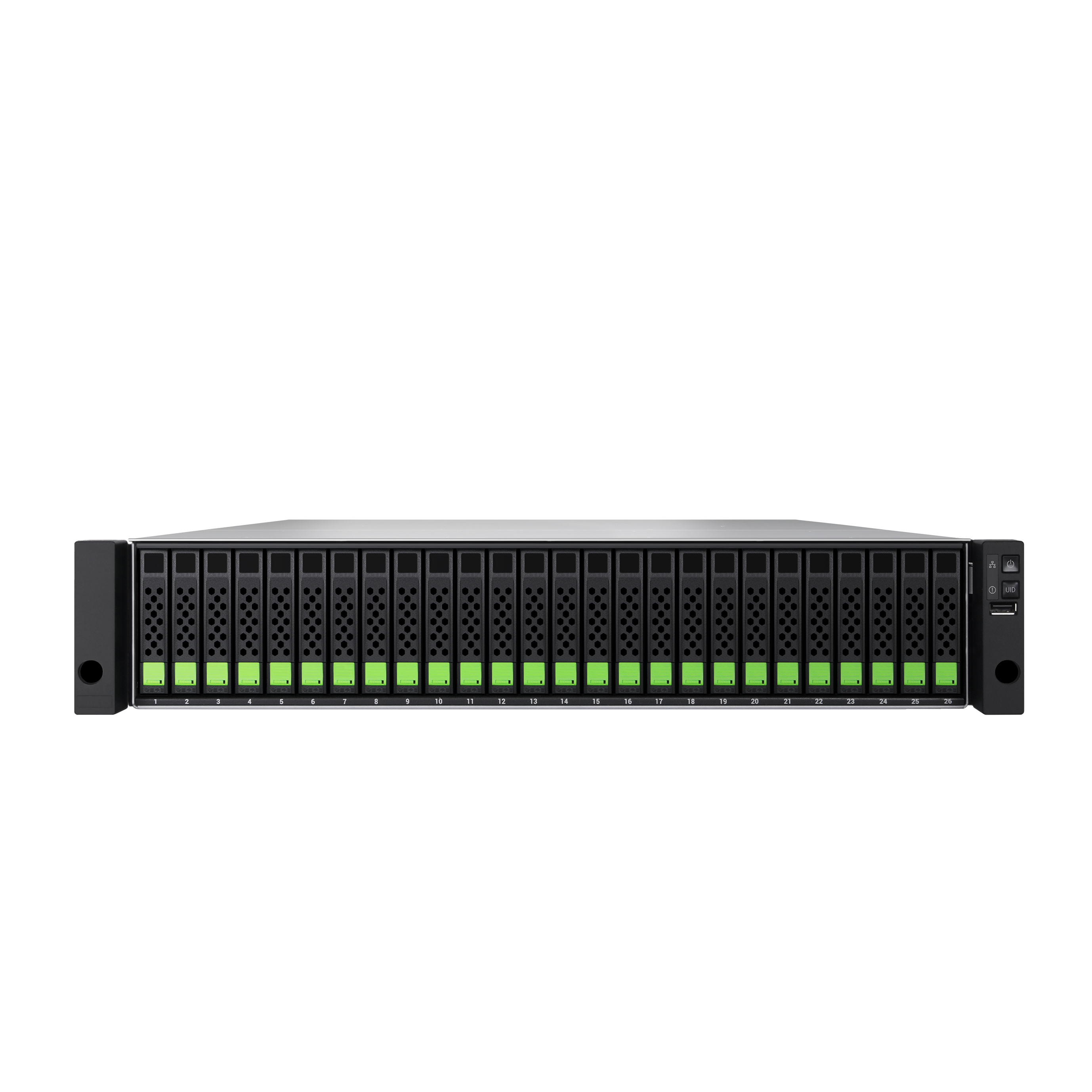

26 Bay 2U Dual-Controller SAN System, iSCSI, RAID 0,1, 5, 6, 10, 50, 60, global hot spare, Intel XEON 4-core 2 GHz (burst up to 3.1GHz), 16GB DDR4 ECC Memory (8GB per controller, max. 512 GB), 8-ported 10GbE 10GBASE-SR iSCSI incl. 4x optical transceiver, 4x 12G SAS expansion port redundant power supply, 4 slots for optional host cards, max. 24 host connection ports, up to 546 of managed drives, max. raw capacity 16,77PB supports 2.5" SAS/SATA* HDD and SSD (*SATA device need optional MUX board for dual controller operation support), up to 1,3 Mio. IOPS, max. throughput 12,8 GB/s up to 4.096 volumes, max. # of hosts iSCSI: 2.048; FC: 512 volume cloning, volume restoration, volume snapshot (4096 snapshots/system, 64 snapshots/LUN, 64 LUNs), remote-replication asynchronous (built-in) and synchronous (option), thin-provisioning, SSD caching (optional), auto-tiering w/ 3-tier (optional), Storage OS XEVO with advanced SW features: drive health monitoring QSLife, System analysis QReport, authorization of user responsibility QAuth. security: HTTPS / SSH / iSCSI CHAP / ISE & SED management: Web UI / Serial console / RESTful API / S.E.S. / LCM(option) incl. slide rail kit.

26 Bay 2U Single-Controller SAN System, iSCSI, RAID 0,1, 5, 6, 10, 50, 60, global hot spare, Intel XEON 4-core 2 GHz (burst up to 3.1GHz), 8GB DDR4 ECC Memory (max. 256 GB), 4-ported 10GbE 10GBASE-SR iSCSI incl. 2x optical transceiver, 2x 12G SAS expansion port redundant power supply, 2 slots for optional host cards, max. 12 host connection ports, up to 546 of managed drives, max. raw capacity 16,77PB supports 2.5" SAS/SATA* HDD and SSD (*SATA device need optional MUX board for dual controller operation support), up to 1,3 Mio. IOPS, max. throughput 12,8 GB/s up to 4.096 volumes, max. # of hosts iSCSI: 2.048; FC: 512 volume cloning, volume restoration, volume snapshot (4096 snapshots/system, 64 snapshots/LUN, 64 LUNs), remote-replication asynchronous (built-in) and synchronous (option), thin-provisioning, SSD caching (optional), auto-tiering w/ 3-tier (optional), Storage OS XEVO with advanced SW features: drive health monitoring QSLife, System analysis QReport, authorization of user responsibility QAuth. security: HTTPS / SSH / iSCSI CHAP / ISE & SED management: Web UI / Serial console / RESTful API / S.E.S. / LCM(option) incl. slide rail kit.
