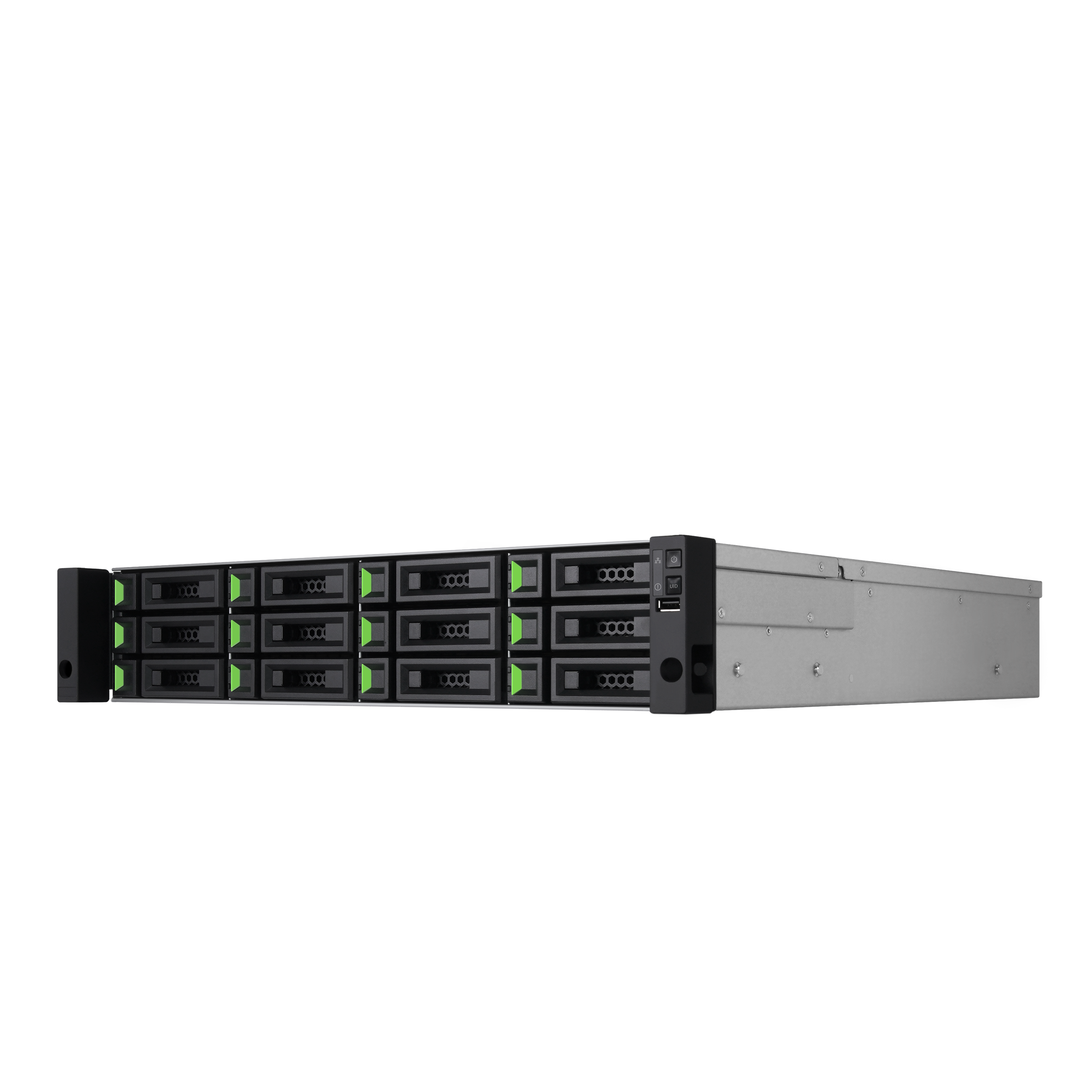

QSAN XCubeSAN XS3312D Dual-Controller SAN System, 12 Bay 2,5/3,5", 12Gb/s SAS, 2U, 8x 10GBASE-SR (incl. 4 GBIC)
Produktnummer:
A23842
Über 10 Jahre Erfahrung
Große Auswahl & Markenqualität
Großes Lager & schneller Versand
Kompetente telefonische Beratung
0176 123456789
0176 123456789
6.980,00 €*
Produktinformationen "QSAN XCubeSAN XS3312D Dual-Controller SAN System, 12 Bay 2,5/3,5", 12Gb/s SAS, 2U, 8x 10GBASE-SR (incl. 4 GBIC)"
12 Bay 2U Dual-Controller SAN System, iSCSI, RAID 0,1, 5, 6, 10, 50, 60, global hot spare,
Intel XEON 4-core 2 GHz (burst up to 3.1GHz), 16GB DDR4 ECC Memory (8GB per controller, max. 512 GB),
8-ported 10GbE 10GBASE-SR iSCSI incl. 4x optical transceiver,
4x 12G SAS expansion port
redundant power supply,
4 slots for optional host cards,
max. 24 host connection ports,
up to 532 of managed drives, max. raw capacity 16,77PB
supports 3.5"/2.5" SAS/SATA* HDD and 2.5" SAS/SATA* SSD (*SATA device need optional MUX board for dual controller operation support),
up to 1,3 Mio. IOPS, max. throughput 12,8 GB/s
up to 4.096 volumes,
max. # of hosts iSCSI: 2.048; FC: 512
volume cloning, volume restoration, volume snapshot (4096 snapshots/system, 64 snapshots/LUN, 64 LUNs), remote-replication asynchronous (built-in) and synchronous (option), thin-provisioning, SSD caching (optional), auto-tiering w/ 3-tier (optional),
Storage OS XEVO with advanced SW features:
drive health monitoring QSLife, System analysis QReport, authorization of user responsibility QAuth.
security: HTTPS / SSH / iSCSI CHAP / ISE & SED
management: Web UI / Serial console / RESTful API / S.E.S. / LCM(option)
incl. slide rail kit.
Dimensions in mm 88 x 438 x 593, Weight in kg 27
