SAN-Speicher für unternehmenskritische Umgebungen Kaufen » Storage & Server

Die XCubeSAN XS5300-Serie ist die neueste Generation von Dual-Active (Active-Active) SAN-Systemen mit hoher Leistung. XS5200-Produkte sind eine ideale Lösung für Anwendungen in unternehmenskritischen Rechenzentren, High Performance Computing, Virtualisierungsintegrationen oder Medien- und Unterhaltungsumgebungen.

QSAN XCubeSAN XS5312D Dual-Controller SAN System, 12 Bay 2,5/3,5", 12 Gb/s SAS, 2U

12 Bay, 2U Dual-Controller SAN System, Intel Xeon Quad Core, 16GB DDR4 ECC Memory (Max. 256GB) per controller, 8-ported 10GbE SFP+ iSCSI with optical transceivers x 4, redundant power supply, redundant fan module, 4 slots for optional host cards, rail kit included 8,192 LUNs (max), 2048 iSCSI host (max), 8,128 snapshots (max), local clone, remote replicaiton, thin provisioning, SSD cache (optional), auto-tiering w/ 3-tier (optional), support for 3.5"/2.5" 12Gb SAS/NL SAS, 6Gb SATA devices (SATA need optional MUX board), Dimensions in mm 88 x 438 x 515, Weight in kg 26

10.343,00 €*

QSAN XCubeSAN XS5312D_8C Dual-Controller SAN System, 12 Bay 2,5/3,5", 12 Gb/s SAS, 2U

12 Bay, 2U Dual-Controller SAN System, Intel Xeon 8-Core, 16GB DDR4 ECC Memory (Max. 256GB) per controller, 8-ported 10GbE SFP+ iSCSI with optical transceivers x 4, redundant power supply, redundant fan module, 4 slots for optional host cards, rail kit included 8,192 LUNs (max), 2048 iSCSI host (max), 8,128 snapshots (max), local clone, remote replicaiton, thin provisioning, SSD cache (optional), auto-tiering w/ 3-tier (optional), support for 3.5"/2.5" 12Gb SAS/NL SAS, 6Gb SATA devices (SATA need optional MUX board), Dimensions in mm 88 x 438 x 515, Weight in kg 26

12.534,00 €*

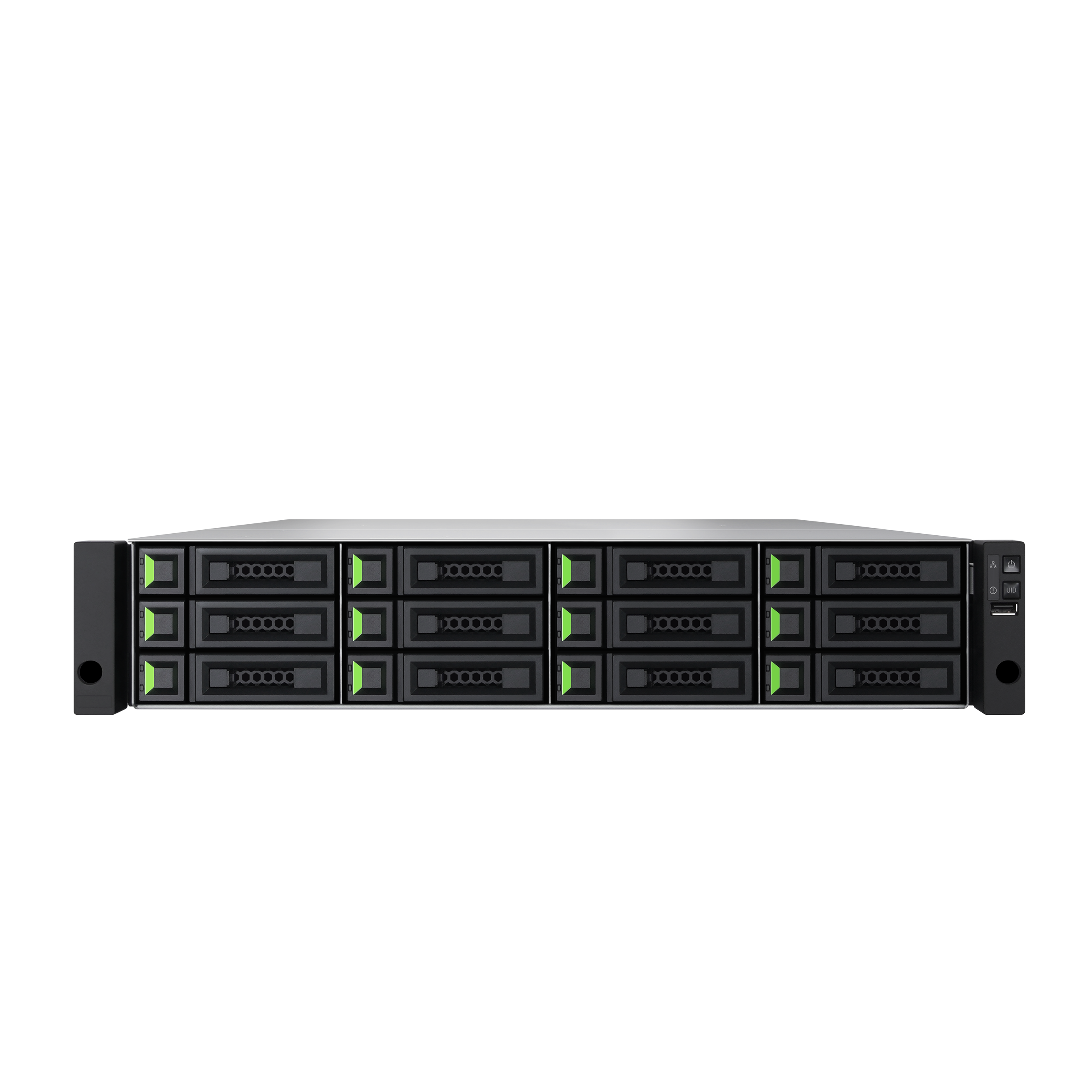

QSAN XCubeSAN XS5312S Single-Controller SAN System, 12 Bay 2,5/3,5", 12 Gb/s SAS, 2U

12 Bay, 2U Single-Controller SAN System, Intel Xeon Quad Core, 16GB DDR4 ECC Memory (Max. 256GB), 4-ported 10GbE SFP+ iSCSI with optical transceivers x 2, redundant power supply, redundant fan module, 2 slots for optional host cards, rail kit included 8,192 LUNs (max), 2048 iSCSI host (max), 8,128 snapshots (max), local clone, remote replicaiton, thin provisioning, SSD cache (optional), auto-tiering w/ 3-tier (optional), support for 3.5"/2.5" 12Gb SAS/NL SAS, 6Gb SATA devices (SATA need optional MUX board), Dimensions in mm 88 x 438 x 515, Weight in kg 24

8.211,00 €*

QSAN XCubeSAN XS5316D Dual-Controller SAN System, 16 Bay 2,5/3,5", 12 Gb/s SAS, 3U

16 Bay, 3U Dual-Controller SAN System, Intel Xeon Quad Core, 16GB DDR4 ECC Memory (Max. 256GB) per controller, 8-ported 10GbE SFP+ iSCSI with optical transceivers x 4, redundant power supply, redundant fan module, 4 slots for optional host cards, rail kit included 8,192 LUNs (max), 2048 iSCSI host (max), 8,128 snapshots (max), local clone, remote replicaiton, thin provisioning, SSD cache (optional), auto-tiering w/ 3-tier (optional), support for 3.5"/2.5" 12Gb SAS/NL SAS, 6Gb SATA devices (SATA need optional MUX board), Dimensions in mm 132 x 438 x 515, Weight in kg 30

11.497,00 €*

QSAN XCubeSAN XS5316D_8C Dual-Controller SAN System, 16 Bay 2,5/3,5", 12 Gb/s SAS, 3U

16 Bay, 3U Dual-Controller SAN System, Intel Xeon 8-Core, 16GB DDR4 ECC Memory (Max. 256GB) per controller, 8-ported 10GbE SFP+ iSCSI with optical transceivers x 4, redundant power supply, redundant fan module, 4 slots for optional host cards, rail kit included 8,192 LUNs (max), 2048 iSCSI host (max), 8,128 snapshots (max), local clone, remote replicaiton, thin provisioning, SSD cache (optional), auto-tiering w/ 3-tier (optional), support for 3.5"/2.5" 12Gb SAS/NL SAS, 6Gb SATA devices (SATA need optional MUX board), Dimensions in mm 132 x 438 x 515, Weight in kg 30

12.493,34 €*

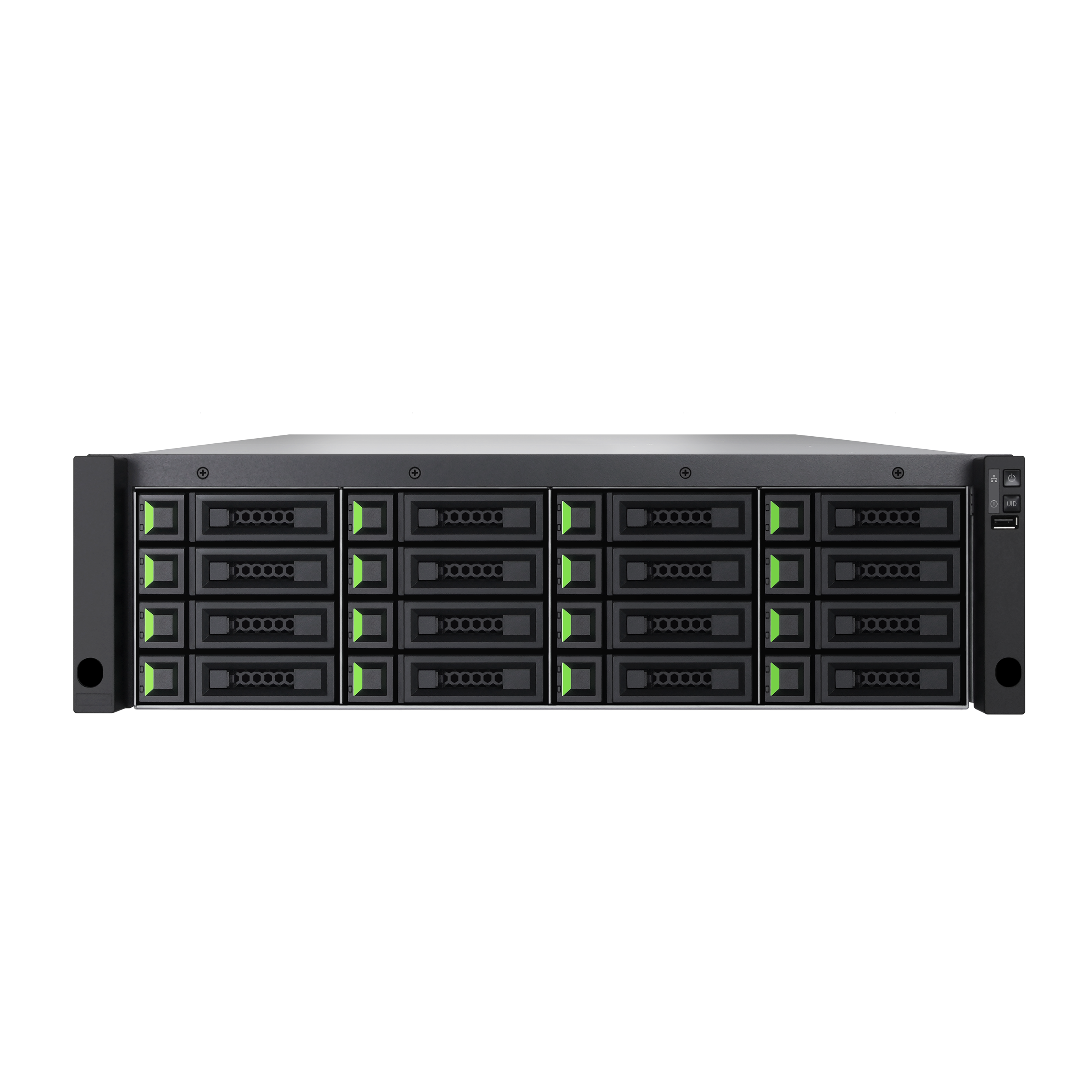

QSAN XCubeSAN XS5316S Single-Controller SAN System, 16 Bay 2,5/3,5", 12 Gb/s SAS, 3U

16 Bay, 3U Single-Controller SAN System, Intel Xeon Quad Core, 16GB DDR4 ECC Memory (Max. 256GB), 4-ported 10GbE SFP+ iSCSI with optical transceivers x 2, redundant power supply, redundant fan module, 2 slots for optional host cards, rail kit included 8,192 LUNs (max), 2048 iSCSI host (max), 8,128 snapshots (max), local clone, remote replicaiton, thin provisioning, SSD cache (optional), auto-tiering w/ 3-tier (optional), support for 3.5"/2.5" 12Gb SAS/NL SAS, 6Gb SATA devices (SATA need optional MUX board), Dimensions in mm 132 x 438 x 515, Weight in kg 30

9.365,00 €*

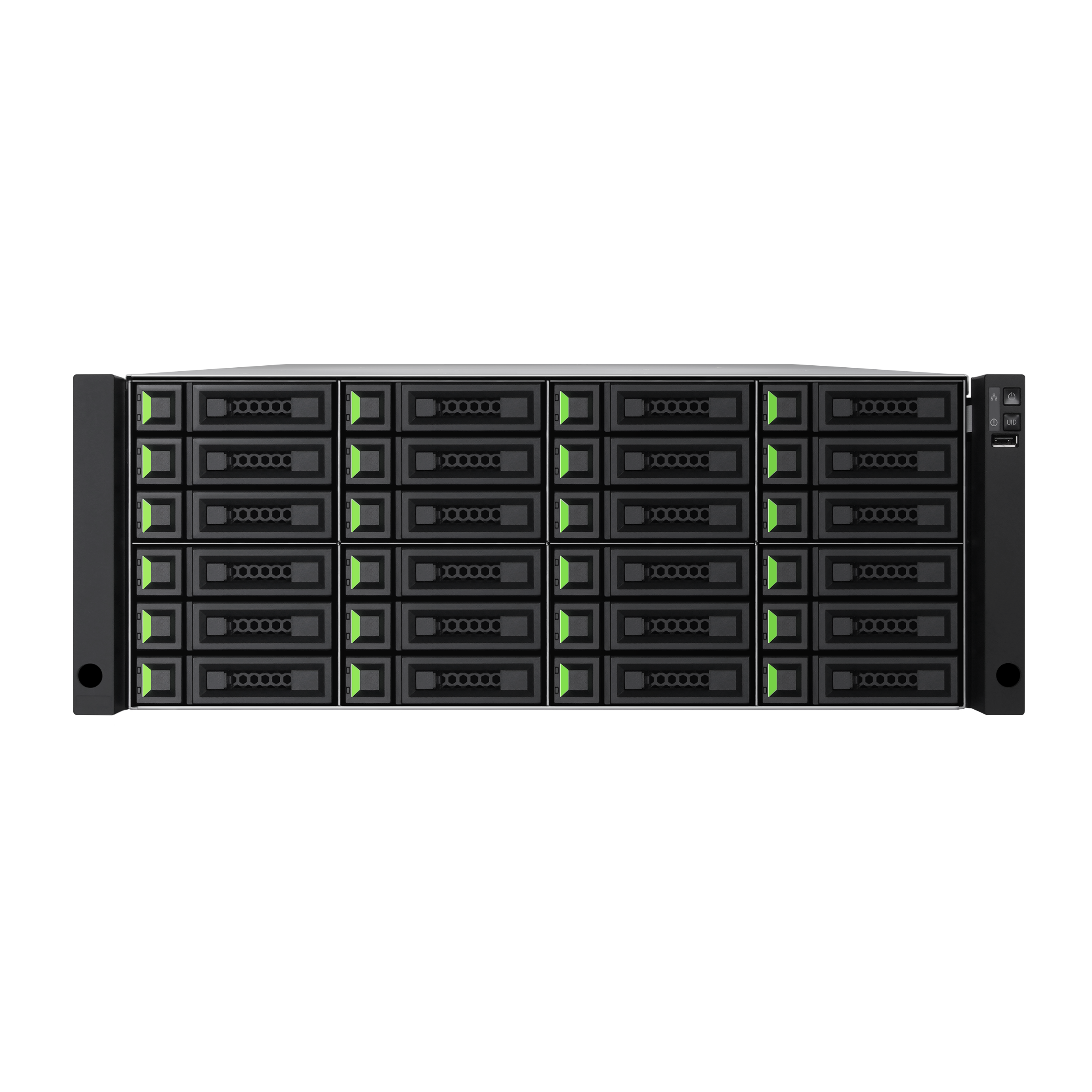

QSAN XCubeSAN XS5324D Dual-Controller SAN System, 24 Bay 2,5/3,5", 12 Gb/s SAS, 4U

24 Bay, 4U Dual-Controller SAN System, Intel Xeon Quad Core, 16GB DDR4 ECC Memory (Max. 256GB) per controller, 8-ported 10GbE SFP+ iSCSI with optical transceivers x 4, redundant power supply, redundant fan module, 4 slots for optional host cards, rail kit included 8,192 LUNs (max), 2048 iSCSI host (max), 8,128 snapshots (max), local clone, remote replicaiton, thin provisioning, SSD cache (optional), auto-tiering w/ 3-tier (optional), support for 3.5"/2.5" 12Gb SAS/NL SAS, 6Gb SATA devices (SATA need optional MUX board), Dimensions in mm 170.3 x 438 x 601, Weight in kg 31,9

13.336,00 €*

QSAN XCubeSAN XS5324D_8C Dual-Controller SAN System, 24 Bay 2,5/3,5", 12 Gb/s SAS, 4U

24 Bay, 4U Dual-Controller SAN System, Intel Xeon 8-Core, 16GB DDR4 ECC Memory (Max. 256GB) per controller, 8-ported 10GbE SFP+ iSCSI with optical transceivers x 4, redundant power supply, redundant fan module, 4 slots for optional host cards, rail kit included 8,192 LUNs (max), 2048 iSCSI host (max), 8,128 snapshots (max), local clone, remote replicaiton, thin provisioning, SSD cache (optional), auto-tiering w/ 3-tier (optional), support for 3.5"/2.5" 12Gb SAS/NL SAS, 6Gb SATA devices (SATA need optional MUX board), Dimensions in mm 170.3 x 438 x 601, Weight in kg 31,9

16.104,00 €*

QSAN XCubeSAN XS5324S Single-Controller SAN System, 24 Bay 2,5/3,5", 12 Gb/s SAS, 4U

24 Bay, 4U Single-Controller SAN System, Intel Xeon Quad Core, 16GB DDR4 ECC Memory (Max. 256GB), 4-ported 10GbE SFP+ iSCSI with optical transceivers x 2, redundant power supply, redundant fan module, 2 slots for optional host cards, rail kit included 8,192 LUNs (max), 2048 iSCSI host (max), 8,128 snapshots (max), local clone, remote replicaiton, thin provisioning, SSD cache (optional), auto-tiering w/ 3-tier (optional), support for 3.5"/2.5" 12Gb SAS/NL SAS, 6Gb SATA devices (SATA need optional MUX board), Dimensions in mm 170.3 x 438 x 601, Weight in kg 31,9

11.205,00 €*

QSAN XCubeSAN XS5326D Dual-Controller SAN System, 26 Bay 2,5", 12 Gb/s SAS, 2U, 8x 10GBASE-SR (incl. 4 GBIC)

26 Bay, 2U Dual-Controller SAN System, Intel Xeon Quad Core, 16GB DDR4 ECC Memory (Max. 256GB) per controller, 8-ported 10GbE SFP+ iSCSI with optical transceivers x 4, redundant power supply, redundant fan module, 4 slots for optional host cards, rail kit included 8,192 LUNs (max), 2048 iSCSI host (max), 8,128 snapshots (max), local clone, remote replicaiton, thin provisioning, SSD cache (optional), auto-tiering w/ 3-tier (optional), support for 2.5" 12Gb SAS/NL SAS, 6Gb SATA devices (SATA need optional MUX board), Dimensions in mm 88 x 438 x 515, Weight in kg 26

10.799,00 €*

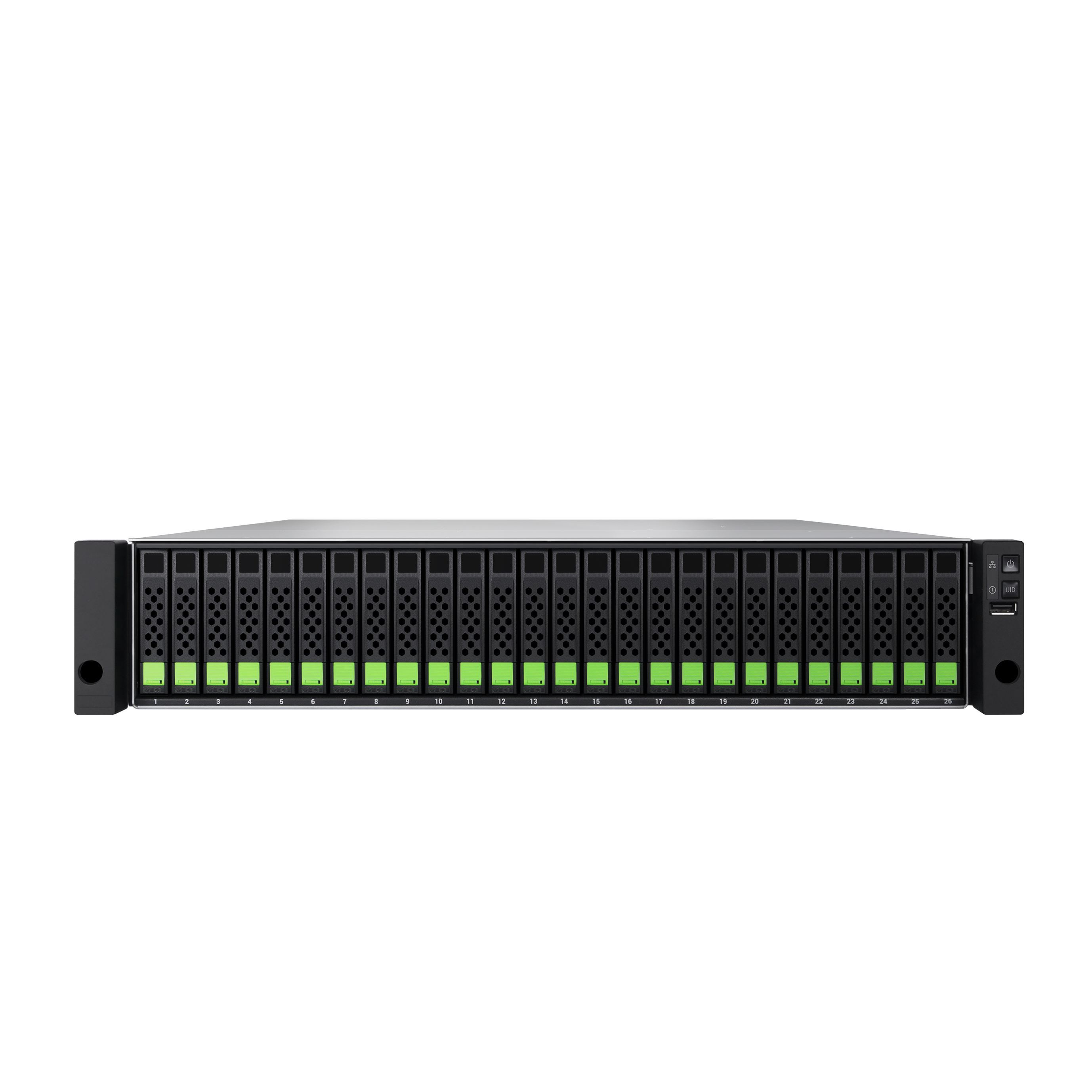

QSAN XCubeSAN XS5326D_8C Dual-Controller SAN System, 26 Bay 2,5", 12 Gb/s SAS, 2U

12 Bay, 2U Dual-Controller SAN System, Intel Xeon 8-Core, 16GB DDR4 ECC Memory (Max. 256GB) per controller, 8-ported 10GbE SFP+ iSCSI with optical transceivers x 4, redundant power supply, redundant fan module, 4 slots for optional host cards, rail kit included 8,192 LUNs (max), 2048 iSCSI host (max), 8,128 snapshots (max), local clone, remote replicaiton, thin provisioning, SSD cache (optional), auto-tiering w/ 3-tier (optional), support for 2.5" 12Gb SAS/NL SAS, 6Gb SATA devices (SATA need optional MUX board), Dimensions in mm 88 x 438 x 515, Weight in kg 26

12.875,00 €*

QSAN XCubeSAN XS5326S Single-Controller SAN System, 26 Bay 2,5", 12 Gb/s SAS, 2U

12 Bay, 2U Single-Controller SAN System, Intel Xeon Quad Core, 16GB DDR4 ECC Memory (Max. 256GB), 4-ported 10GbE SFP+ iSCSI with optical transceivers x 2, redundant power supply, redundant fan module, 2 slots for optional host cards, rail kit included 8,192 LUNs (max), 2048 iSCSI host (max), 8,128 snapshots (max), local clone, remote replicaiton, thin provisioning, SSD cache (optional), auto-tiering w/ 3-tier (optional), support for 2.5" 12Gb SAS/NL SAS, 6Gb SATA devices (SATA need optional MUX board), Dimensions in mm 88 x 438 x 515, Weight in kg 24

8.668,00 €*
